Overview

Whenever the service receives an API call or an event occurs (e.g., an item is added to a queue or a timer event fires), a message is created. This message is passed through the configured connector pipeline with relevant data attached to the headers or payload of the message. This section describes how that message flows through the pipeline and the common inbuilt pipes used to manipulate it.

The ILokiMessage Interface

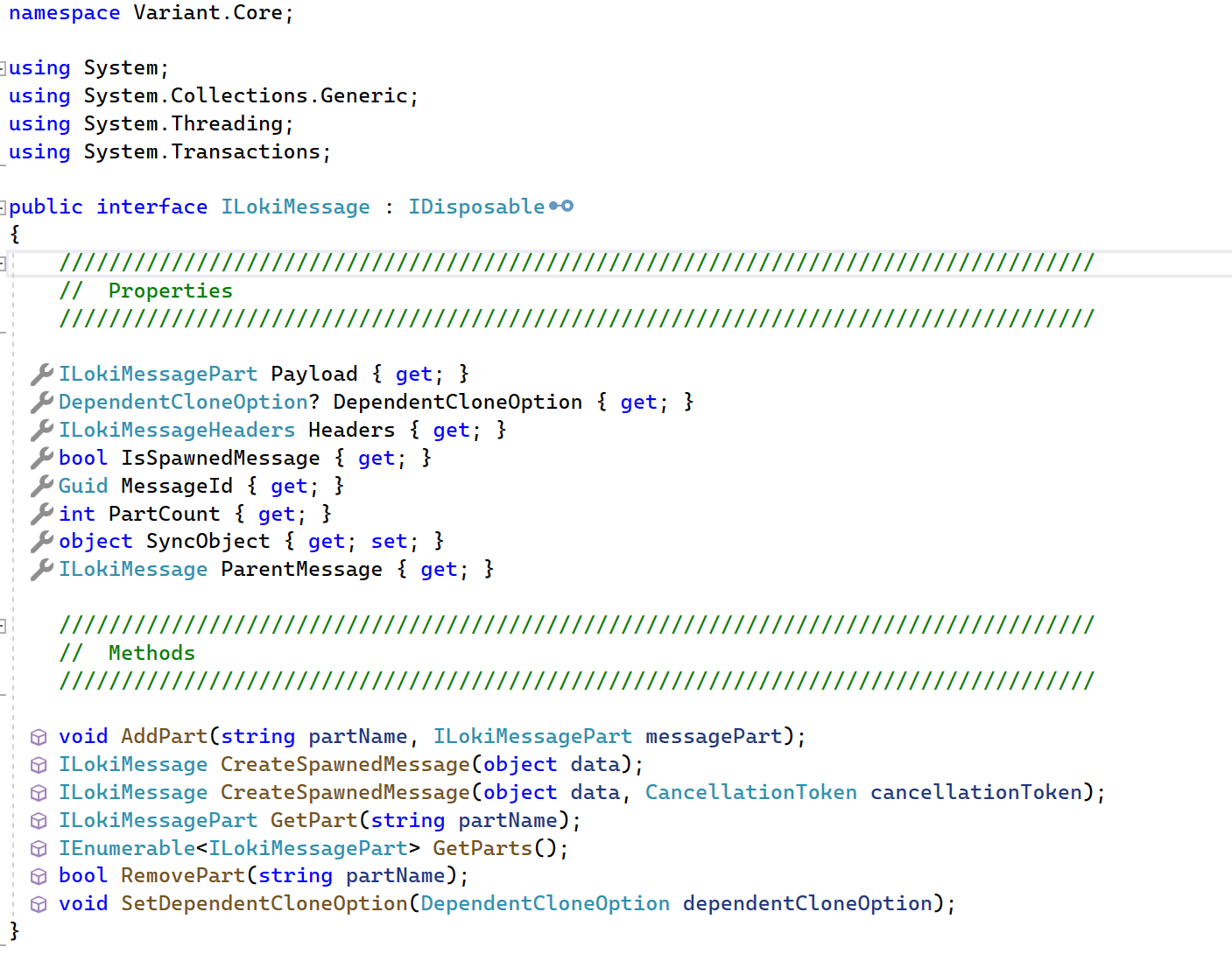

ILokiMessage is the interface representing the core message structure used throughout Variant applications. Each message, along with its associated transactional and synchronization metadata, is encapsulated in a LokiMessage class.

The key components of a LokiMessage are:

• Headers: Key-value pairs used for routing, message enrichment, and metadata handling.

• Payload: The primary data carried by the message. Messages may have multiple data parts, with Payload being the first.

• CreateSpawnedMessage() / IsSpawnedMessage: These handle message spawning, where new messages are derived from a parent message (e.g., in batch processing). This supports correlation and tracking of spawned messages.

The ModifyMessageStrategy

.NET Core Implementation

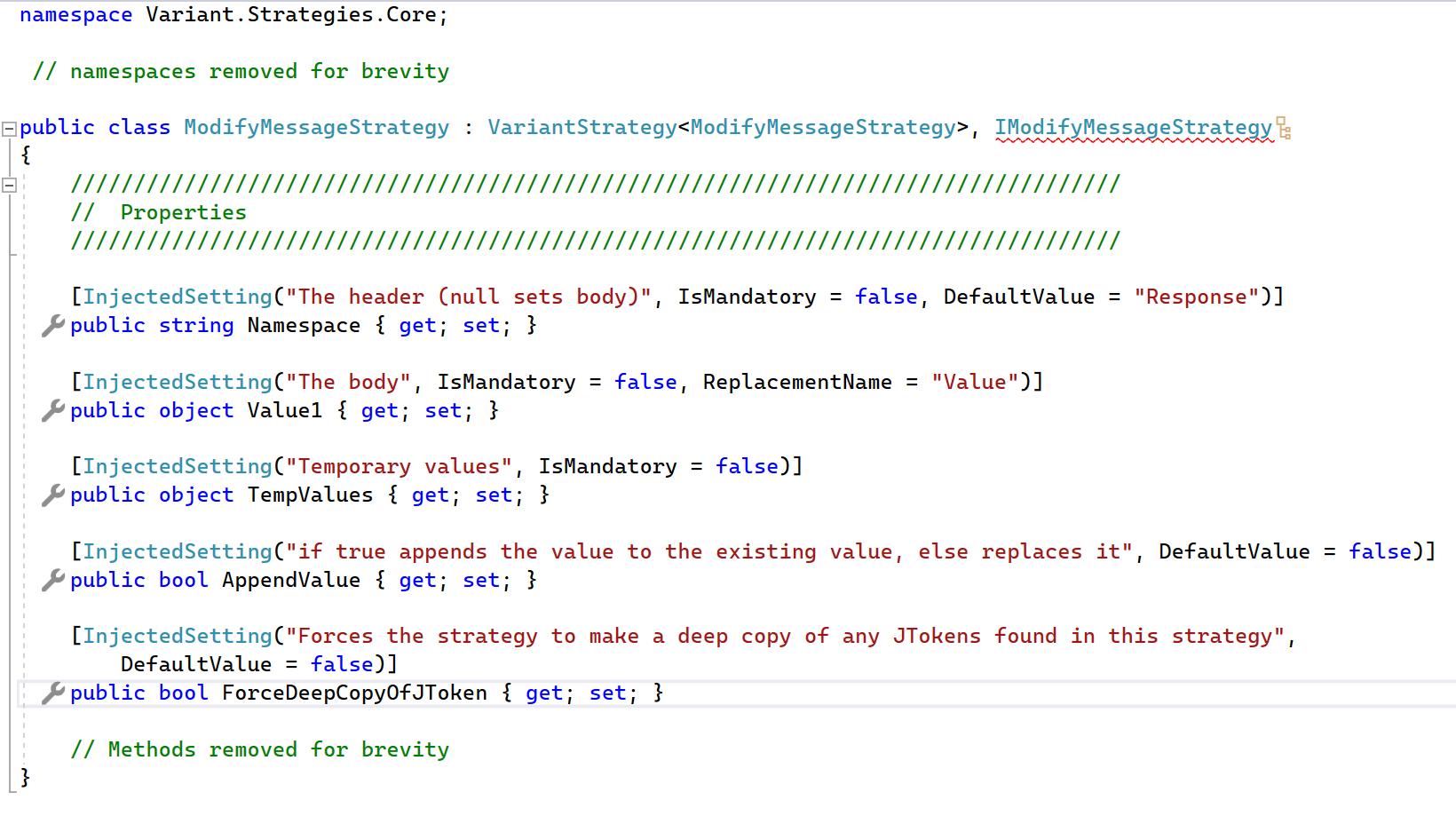

The central strategy for modifying a LokiMessage is the ModifyMessageStrategy class. Below is a visual of its structure:

This strategy includes several injected properties:

• Namespace: Specifies the header name where the value is stored. If omitted, the value is stored as the payload. Defaults to Response.

• Value: The content to be stored, which can be a string, object, or substitution expression.

• TempValues: A transient data structure available only during the current strategy execution. Access using ${TempValues.property}.

• AppendValue: If true, appends the value to an array. If the namespace is not an array, one is created.

• ForceDeepCopyOfJToken: Ensures the stored JToken is a deep copy to prevent unwanted mutation of shared data.

[!NOTE] The Response header is commonly used by HTTP connectors to return values in API responses. These are typically serialized via Variant.Json.ConvertObjectToJsonStrategyPipe.

YAML Implementations

Variant provides multiple specialisations of the ModifyMessageStrategyPipe, optimised for different use cases.

Default Implementation

- key: Variant.Core.ModifyMessageStrategyPipe
  value:
    pipe: Variant.Core.ModifyMessagePipe
    replacements:
      CAN_EXECUTE_EXPRESSION: null
      CAN_EXECUTE_STRATEGY: null
      CONTINUATION_POLICY: Default
      VALUE:
      TEMP_VALUES:
      NAMESPACE: Response
      APPEND_VALUE: False
      FORCE_DEEP_COPY_OF_J_TOKEN: False
    defaults:
      LOG_ERRORS: True
      ACTIVITY_NAME:
      EXECUTION_FLOW_STRATEGY: null
      MODIFY_MESSAGE_STRATEGY:
        strategy: Variant.Core.ModifyMessageStrategy

Specialisations

Specialised versions of the strategy provide streamlined usage for common scenarios. These include:

• General-purpose specialisations:

  • Variant.Core.Simple.ModifyMessageArrayStrategyPipe

  • Variant.Core.Simple.ModifyMessageStrategyPipe

• API helper specialisations:

  • Variant.Core.SetResponse

  • Variant.Core.SetResponseHeaders

  • Variant.Core.SetResponseStatusCodeAndHeaders

Example specialisations:

- key: Variant.Core.ModifyMessageArrayStrategyPipe
  value:
    pipe: Variant.Core.ModifyMessageStrategyPipe
    replacements:
      CAN_EXECUTE_EXPRESSION: null
      CONTINUATION_POLICY: Default
      VALUE: null
      TEMP_VALUES: null
      NAMESPACE: Response
    defaults:
      APPEND_VALUE: true

- key: Variant.Core.SetResponse
  value:
    pipe: Variant.Core.ModifyMessageStrategyPipe
    replacements:
      RESPONSE:
    defaults:
      NAMESPACE: Response
      VALUE: RESPONSE

- key: Variant.Core.SetResponseHeaders
  value:
    pipe: Variant.Core.ModifyMessageStrategyPipe
    replacements:
      HEADERS:
    defaults:
      NAMESPACE!: Response.Headers
      VALUE: HEADERS

- key: Variant.Core.SetResponseStatusCodeAndHeaders
  value:
    pipe: Variant.Core.DefaultScopedPipe
    replacements:
      HEADERS: null
      STATUS_CODE: null
      RESPONSE: null
    defaults:
      SCOPED_PIPES:
        - pipe: Variant.Core.ModifyMessageStrategyPipe
          NAMESPACE!: Response.Headers
          VALUE!: HEADERS
        - pipe: Variant.Core.ModifyMessageStrategyPipe
          NAMESPACE!: Response.StatusCode
          VALUE!: STATUS_CODE
        - pipe: Variant.Core.ModifyMessageStrategyPipe
          NAMESPACE!: Response
          VALUE!: RESPONSE

[!NOTE] SetResponseStatusCodeAndHeaders should only be used for successful responses (status < 300). Use ThrowErrorBreakPipe for error handling scenarios.
